Build & Review: 8x8 LED Matrix with MAX7219 ๐Ÿ› ๏ธ

Quick build and review of an 8x8 LED matrix driven by MAX7219 via SPI, showcasing assembly and features.

Build & Review: 8x8 LED Matrix with MAX7219 ๐Ÿ› ๏ธ
randomtronic (Henry Farad-Ohm)
2.3K views โ€ข Jun 11, 2016
Build & Review: 8x8 LED Matrix with MAX7219 ๐Ÿ› ๏ธ

About this video

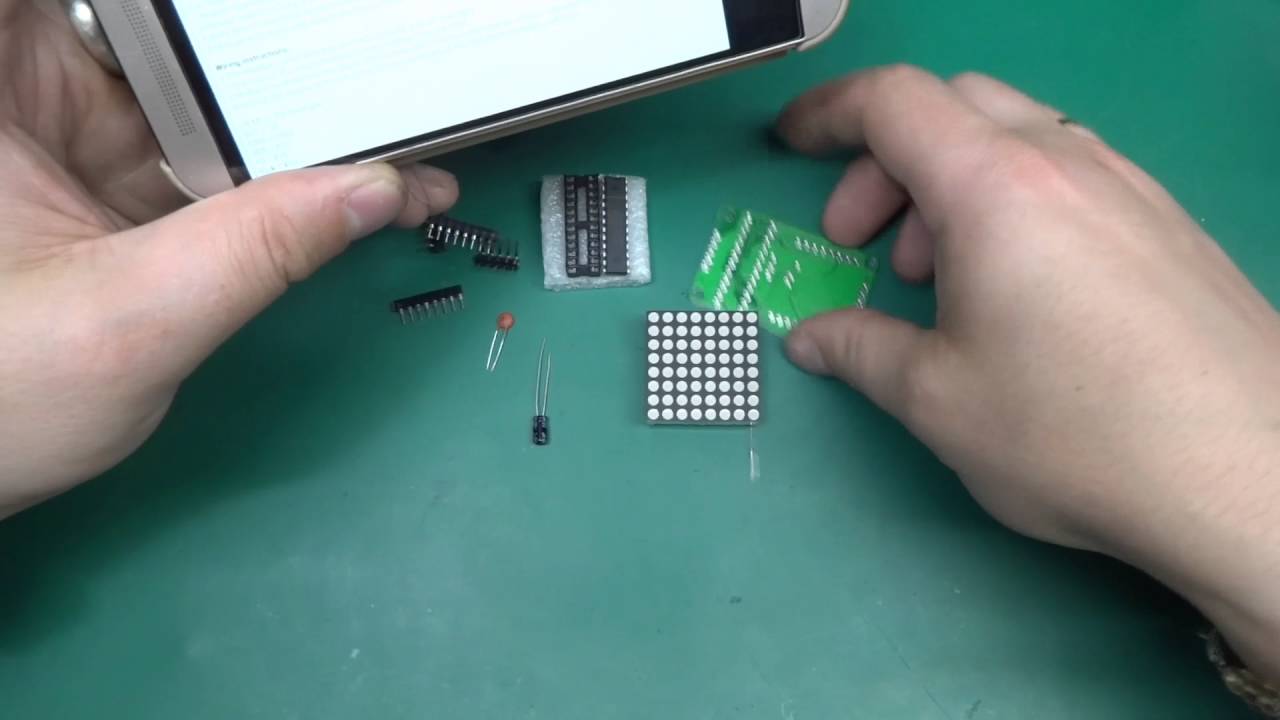

I have another toy! This time it's an 8x8 LED matrix driven by MAX 7219 through SPI. It came unsoldered, so after quickly putting some heat into it, I went on to experimenting with the Arduino skeches. First I searched and searched - and downloaded -then when I had something on display, I tried modifying it a little. Now I know more less how to drive this little gizmo. Really good quality PCB board and 5 components :)

ebay listing here:
http://www.ebay.co.uk/itm/291607807732
