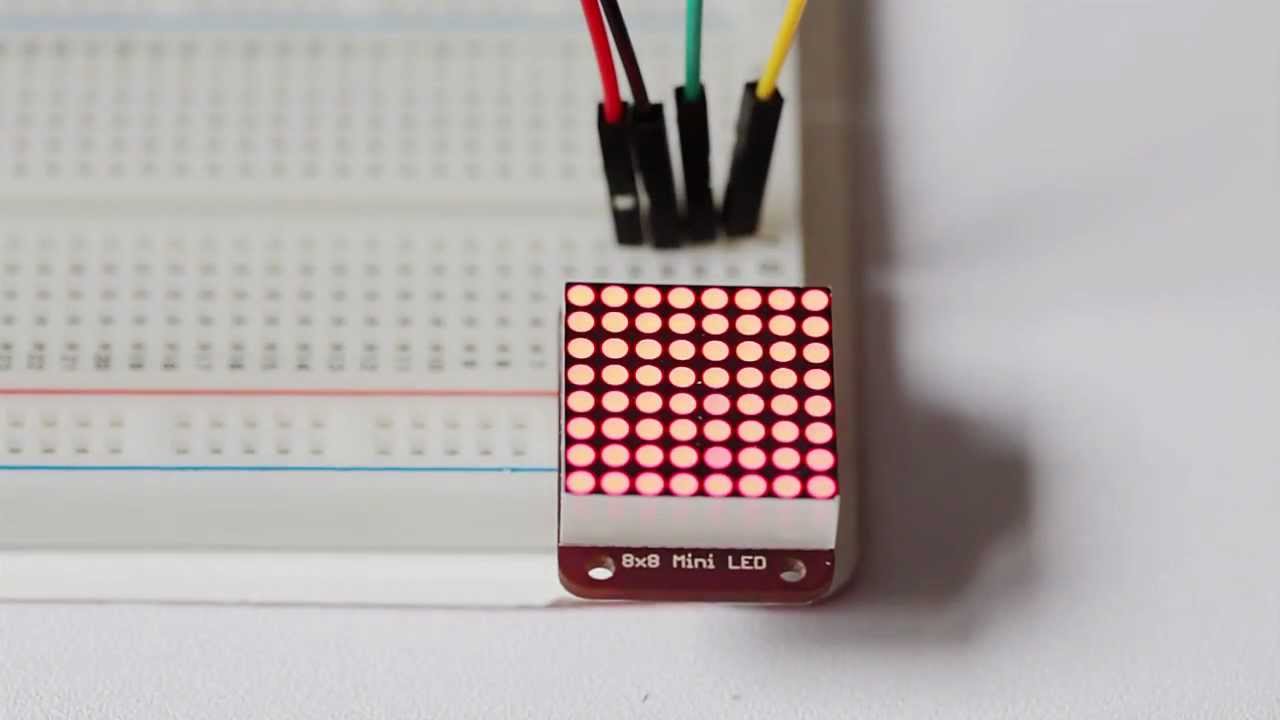

Adafruit Mini 8x8 LED Matrix with I2C Backpack 🔴

Create colorful displays with the compact 8x8 LED matrix featuring an I2C interface. Perfect for small, bright projects.

Adafruit Mini 8x8 LED Matrix with I2C Backpack 🔴
Adafruit Industries
54.5K views • Aug 24, 2012
Adafruit Mini 8x8 LED Matrix with I2C Backpack 🔴

About this video

http://www.adafruit.com/products/870

What's better than a single LED? Lots of LEDs! A fun way to make a small display is to use an 8x8 matrix or a 4-digit 7-segment display. Matrices like these are 'multiplexed' - so to control 64 LEDs you need 16 pins. That's a lot of pins, and there are driver chips like the MAX7219 that can control a matrix for you but there's a lot of wiring to set up and they take up a ton of space. Here at Adafruit we feel your pain! After all, wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these adorable LED matrix backpacks come in. We have them in two flavors - a mini 8x8 and a 4-digit 0.56" 7-segment. They work perfectly with the matrices we stock in the Adafruit shop and make adding a bright little display trivial.
