Transistor-Based XOR Gate Logic Circuit 🔧

This video is about XOR gate using transistors, sometime it is know as Exclusive or gate. I've explained the working of the transistor XOR logic circuit and also shown in breadboard.

Its truth Table,

INPUT OUTPUT
A B A XOR B
0 0 0
0 1 1
1 0 1
1 1 0

XOR gate is a digital logic gate that gives a HIGH output when the number of inputs is not same. If both inputs are LOW or both are HIGH, a LOW output results.

Chapters:
0:00 - Circuit diagram
1:48 - Working of the circuit

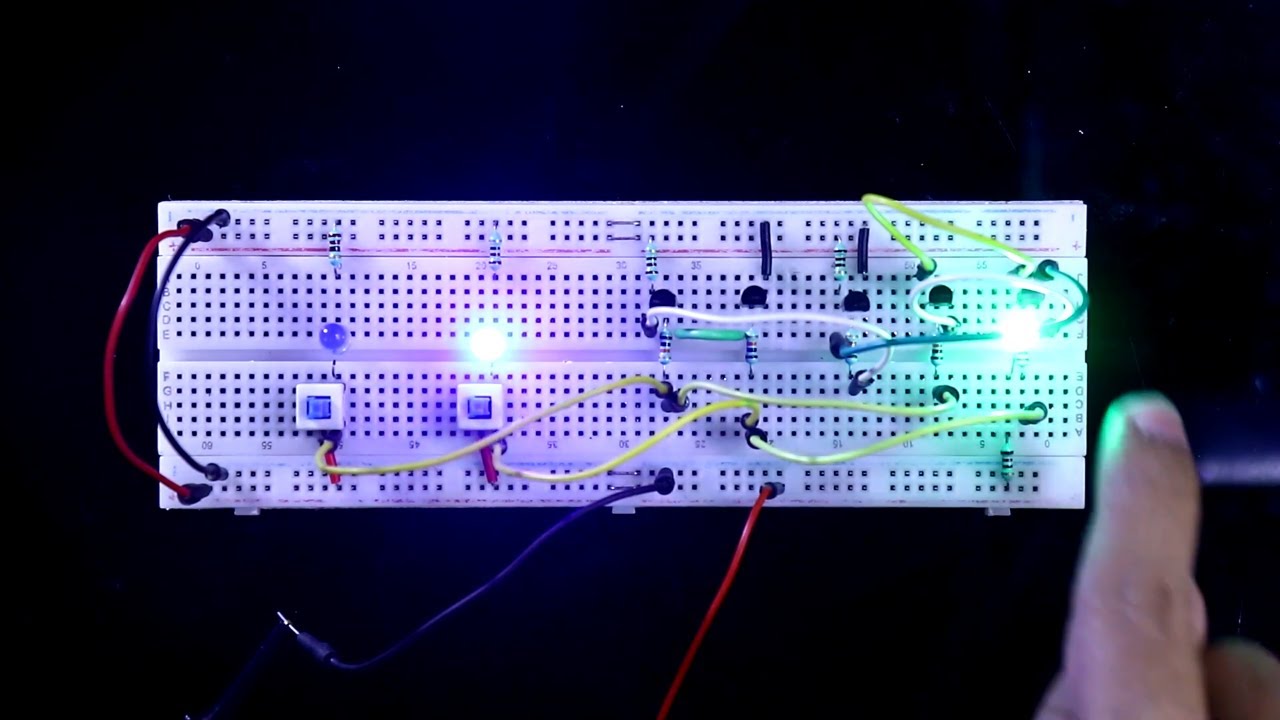

4:08 - Breadboard connections
5:12 - Output

__________________________________________________________________
Required Components:

Resistors: 220 Ω, 10 KΩ
Transistor: BC548 (You can use any NPN transistor)
Miscellaneous: Breadboard, LED, 5v power supply

--------------------------------------------------------------------------------
