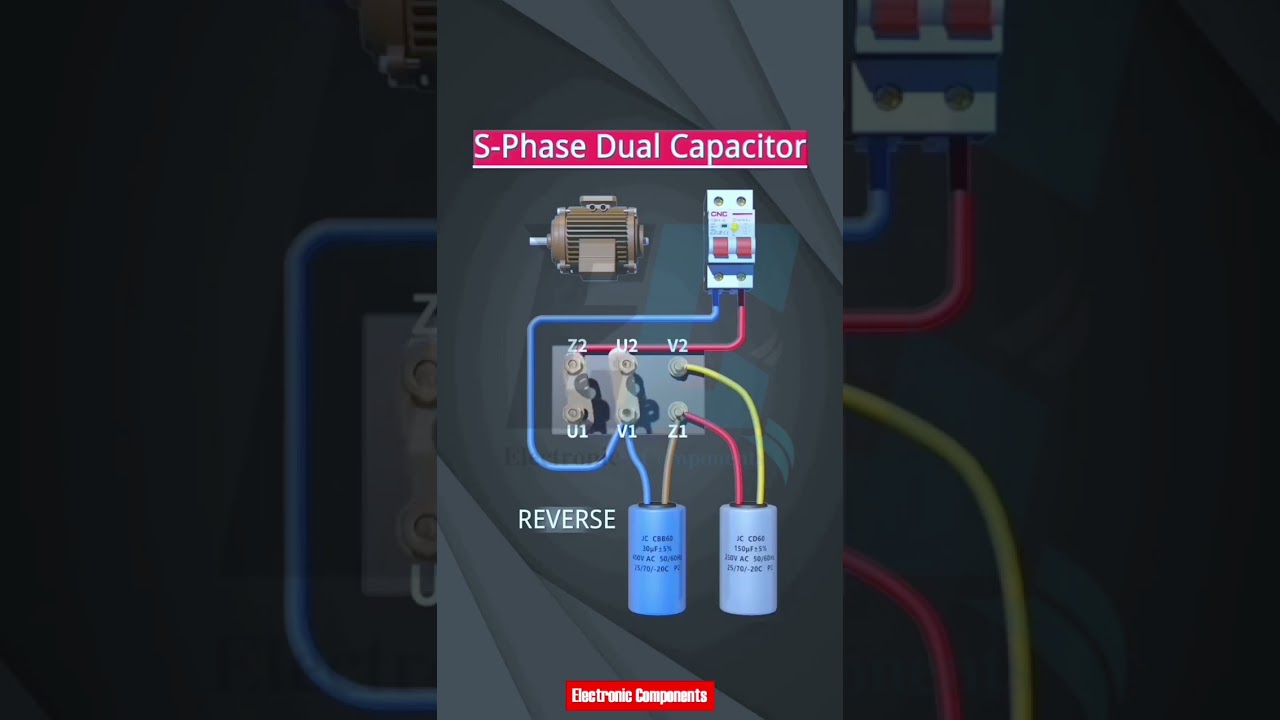

Single Phase Dual Capacitor Motor: Forward & Reverse Wiring

Wiring of forward And reverse rotation of Single Phase Dual Capacitor Motor



🔰⚡ Official YouTube channel of ⚡🔰
I am Prince Kumar and welcome back to our
YouTube channel ''‎⁨@RP_Electric⁩
In This Channel Tricks ,
All type in Electric Technician.
🔰 So Please Subscribe My Channe🔰
🙏So Please Subscribe My Channel ♥️



Learn how to wire a single-phase motor with double capacitors for forward and reverse operation in this detailed step-by-step tutorial. This video covers:

Understanding the wiring connections for run and start capacitors.

Switching the direction of rotation safely and efficiently.

Practical tips for troubleshooting and installation.


Whether you're an electrician, technician, or DIY enthusiast, this guide simplifies the process with a clear wiring diagram and easy-to-follow instructions.
Check out my channel for more videos: Subscribe for more electrical wiring tutorials and circuit diagram videos!
📌 Don't forget to like, share, and leave your questions in the comments below!‪@RP-ELECTRIC r
#singlephasemotor #forwardreverse #reverseforwardstarter #motorstarter #singlephase #capacitor #capacitorconnection





Terminals and Components

Typical single-phase dual capacitor motors have 6 terminals or leads, often labeled as follows (may vary by manufacturer):

T1, T2: Main winding terminals

T3, T4: Start winding terminals (connected through capacitors)

T5, T6: Capacitor connections or additional winding leads



2. Connection Scheme (Conceptual)

Component

Forward Wiring

Reverse Wiring

Main Winding

Connected directly (fixed)

Same as forward

Start Winding

Connected through capacitors (normal)

Capacitor connections swapped

Capacitors

Connected in series with start winding

Polarity of capacitor leads reversed

Switch

DPDT or drum switch that swaps start winding leads connections

See forward

3. Example Simplified Wiring Steps

Identify the main winding terminals (T1 and T2), connect them directly to power (line and neutral).

Identify the start winding terminals (T3 and T4) connected via capacitors.

Connect a DPDT switch between the start winding and capacitor leads, allowing swapping of start winding leads.

In the forward switch position, connect start winding leads to capacitors in one phase.

In the reverse switch position, swap the capacitor connections to the start winding, reversing phase and motor rotation.

Ensure power is off while wiring and secure all connections appropriately.

Important Notes and Safety

Always consult the motor nameplate and manufacturer wiring diagram as terminal labels and wiring may vary.

Using a proper rated reversing switch (DPDT / drum switch) is critical to handle motor currents safely.

Thermal overload protection and proper grounding must be ensured.

Never change connections while motor is powered to avoid damage or shock risk.

If in doubt, consult a qualified electrician or technician.

Summary Diagram (Conceptual)
