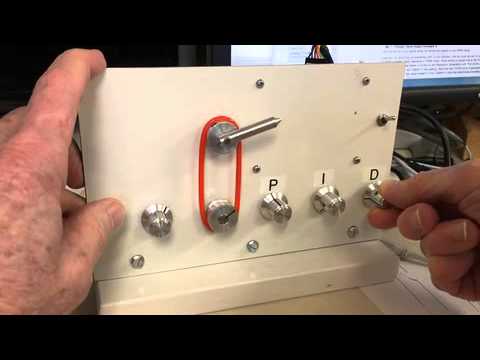

PID Control Demo: Proportional, Integral, Derivative

For those not in the know, PID stands for proportional, integral, derivative control. I’ll break it down:
P: if you’re not where you want to be, get there.
I: if you haven’t been where you want to be for a long time, get there faster
D: if you’re getting close to where you want to be, slow down.

Motors, in general, don’t start or stop on a dime. So it’s easy to overshoot, undershoot, whatever. PID allows you to dial in those three concepts with numbers

Thanks Warlax 56 for simplifying the PID

تجربة مثيرة لفهم تأثير معلمات متحكم PID
تستطيع تحميل ملفات المشروع من الرابط التالي : https://drive.google.com/file/d/0BzmbIyWePioHWVhHZE04QmVnck0/view?usp=sharing&resourcekey=0-iivFjFSA6x_Rj1QQKSBgCQ

Author : Dale Heatherington
