Microstrip Bandpass Filter Design Formulas 📡

Filter Design playlist.
https://www.youtube.com/watch?v=OmZyBYe2w6E&list=PLFxhgwM1F4yxBdUMrkTLhTPIeG1I99x3d&index=1

For access to this presentation materials, membership is required: I need the Material PPT
Sent me an email to Technologies.Discussion@gmail.com
If you need the whole playlist material, send me email and we discuss.
Give me some time to response. Thanks.

Formulas for the Design of Coupled Line Bandpass Filter on a Microstrip Line.
Filter Design Part 24. Design Coupled Line Bandpass Filter on Microstrip – Formulas & Techniques!

1st Video:

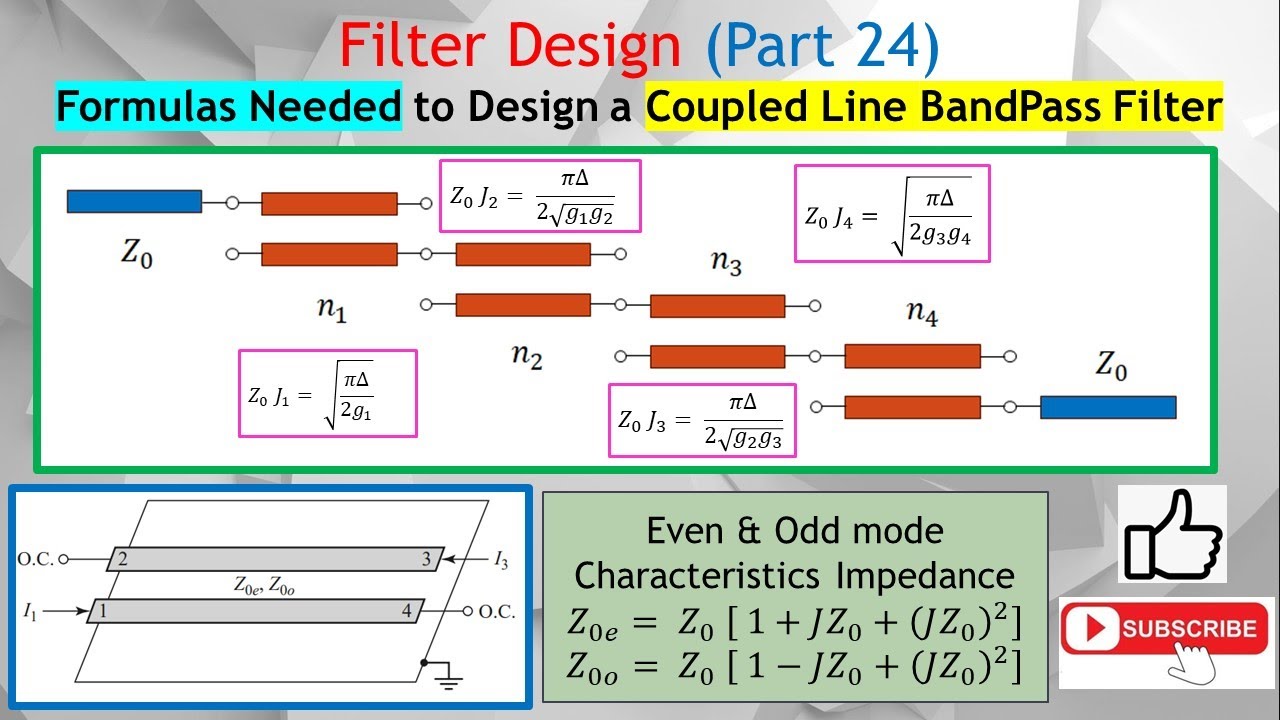

Formulas that are Needed for the Design of Coupled Line Bandpass Filter on a Microstrip Line.
https://youtu.be/ysD_vhm8Ph4

2nd Video:
Bandpass Filter Design Example: How to Design a Coupled Line Bandpass Filter (BPF) from Scratch!
https://youtu.be/eZoE2FQ6R3Q

3rd Video:
How to Find the Width & Gap of the Coupled Line Configure in Microstrip Line for a BandPass Filter.
https://youtu.be/4zMAHmpNOLI

Narrowband bandpass filters can be made with several cascaded coupled line sections each apply a resonant response that contributes to the whole filter’s frequency response.

The key advantages of coupled-line filters over other distributed filters is that the coupling between resonators can be strong if the pair of coupled-line resonators are close to each other, or low if they are widely separated. This enable bandpass filters to be realized with high (70 to 30 %), medium (30 to 10 %) or low (10 to 3 %) bandwidth.

The low-bandwidth filters require low coupling of the resonators, while the high bandwidth filters require high coupling. Coupled-line filters are also compact and can be implemented in microstrip configurations or most of the other transmission line technologies.

Design a coupled line bandpass filter with N = 3 and a 0.5 dB equal-ripple response. The center frequency is 2.0 GHz, the bandwidth is 10%, and Z0 = 50"Ω" . What is the attenuation at 1.8 GHz?
