Design of a Low Pass Filter Using BLT Method π
Explore the design of a normalized low pass filter with a cutoff of 1 rad/sec using the BLT technique in digital signal processing.
Engg-Course-Made-Easy
11.4K views β’ Jan 8, 2025
About this video
Digital Signal Processing BEC502 VTU Model QP

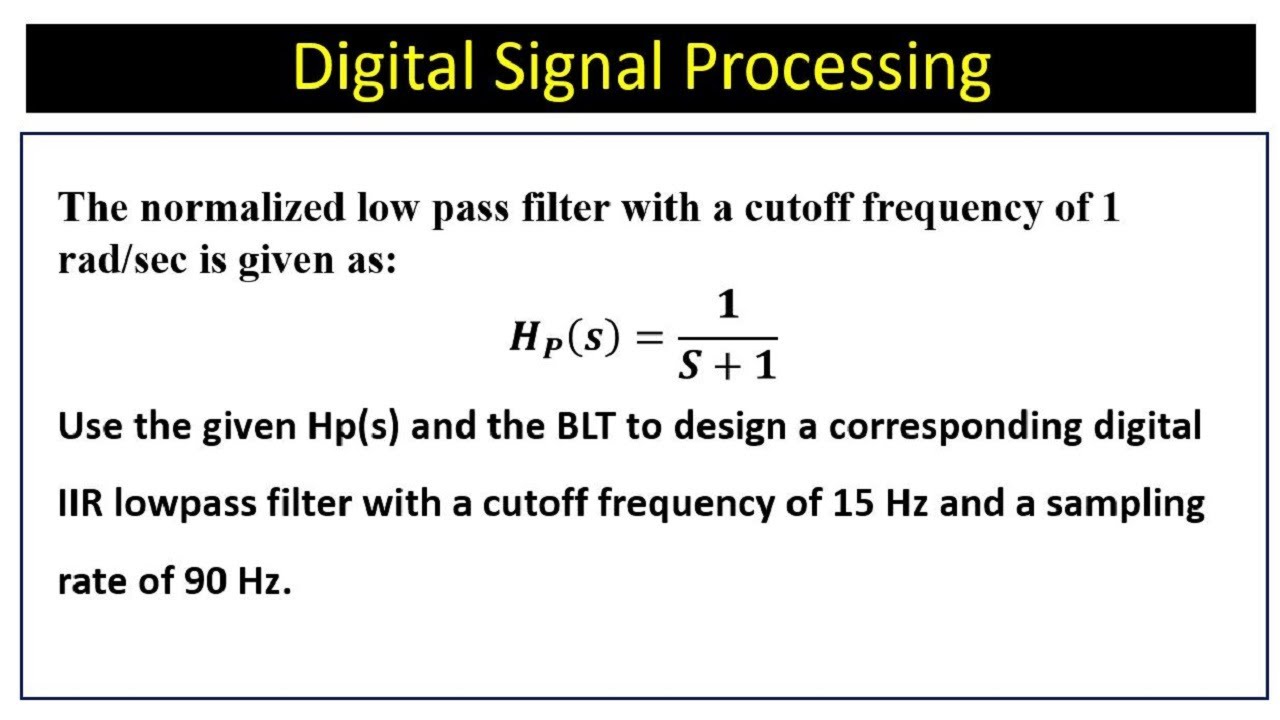

The normalized low pass filter with a cutoff frequency of 1 rad/sec is given as:
π―_π· (π)=π/(πΊ+π)
Use the given Hp(s) and the BLT to design a corresponding digital IIR lowpass filter with a cutoff frequency of 15 Hz and a sampling rate of 90 Hz.
The normalized low pass filter with a cutoff frequency of 1 rad/sec is given as:
π―_π· (π)=π/(πΊ+π)
Use the given Hp(s) and the BLT to design a corresponding digital IIR lowpass filter with a cutoff frequency of 15 Hz and a sampling rate of 90 Hz.
