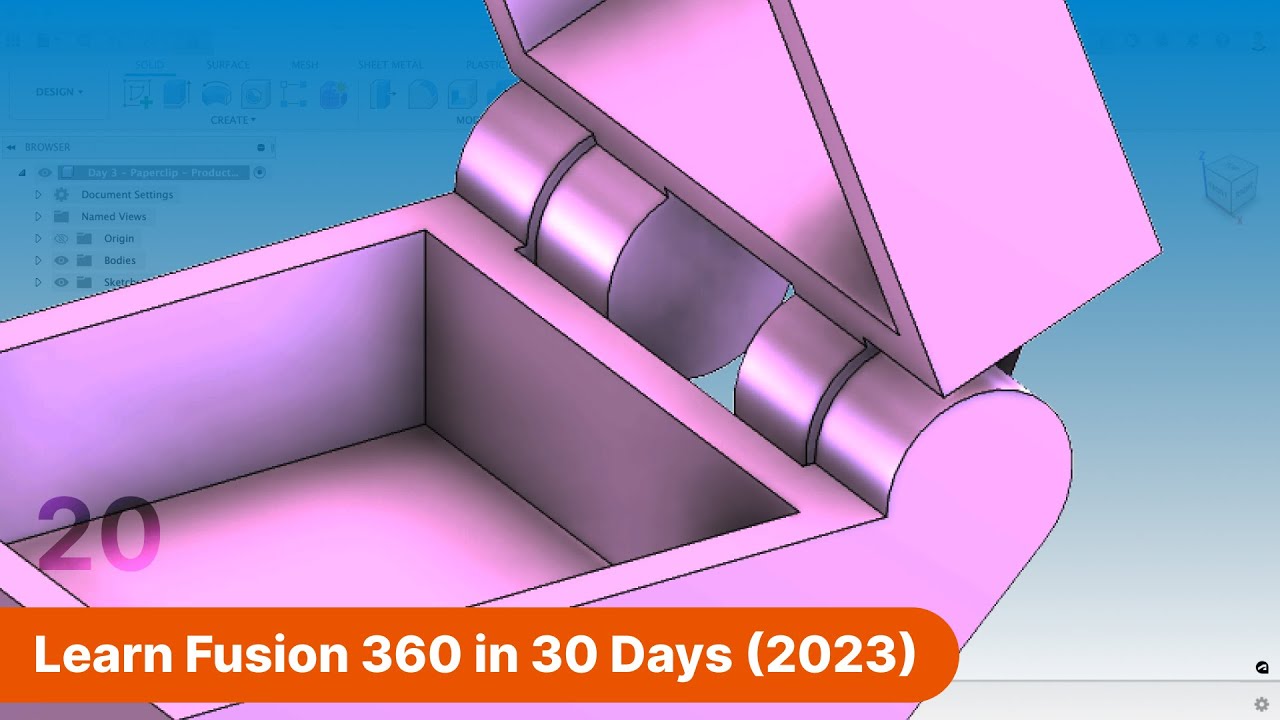

3D Printable Hinges | Fusion 360 Day 20

Learn how to create 3D printable hinges on our parametric box from Day 19. These simple and easy-to-print hinges can be scaled and modified to adapt any 3D print design! We'll discuss designing with a clearance in mind, mirroring the hinges, and much more.

New to Fusion 360? This is a brand new 2023 version of Day #20 of "Learn Fusion 360 in 30 Days for Complete Beginners" - the most popular Fusion 360 course online!

Learn faster with Kevin's Fusion 360 Masterclass at https://ProductDesignOnline.com/courses

Resource Page ➞ https://productdesignonline.com/d20
CHECKLIST FOR BEGINNERS ➞ http://bit.ly/f360checklist

Full course on YouTube: https://bit.ly/30daysUpdated

**Support our free tutorials**
PayPal - https://paypal.com/paypalme/productdesignonline/30
Patreon - https://patreon.com/productdesignonline
Say Thanks w/Coffee - https://buymeacoffee.com/pdo

TIMESTAMPS
00:00 - 3D Printable Hinges in Autodesk Fusion
00:18 - Deleting the Joint and creating a new one
02:04 - Creating the hinge side profile
03:20 - Creating the hinge's inner hinge pin (nub)
04:15 - Creating the inner hinge
06:03 - Creating a clearance between the hinges
06:35 - Removing the hinge pin (nub) from the inner hinge
07:03 - Adding clearance to the inner hinge
07:47 - Mirroring the Hinge to the other side
08:45 - Exporting STL from Autodesk Fusion

—
