Connections Explained: Wiring Two-Way and Intermediate Switches (AM2, AM2S, AM2E) Assessment

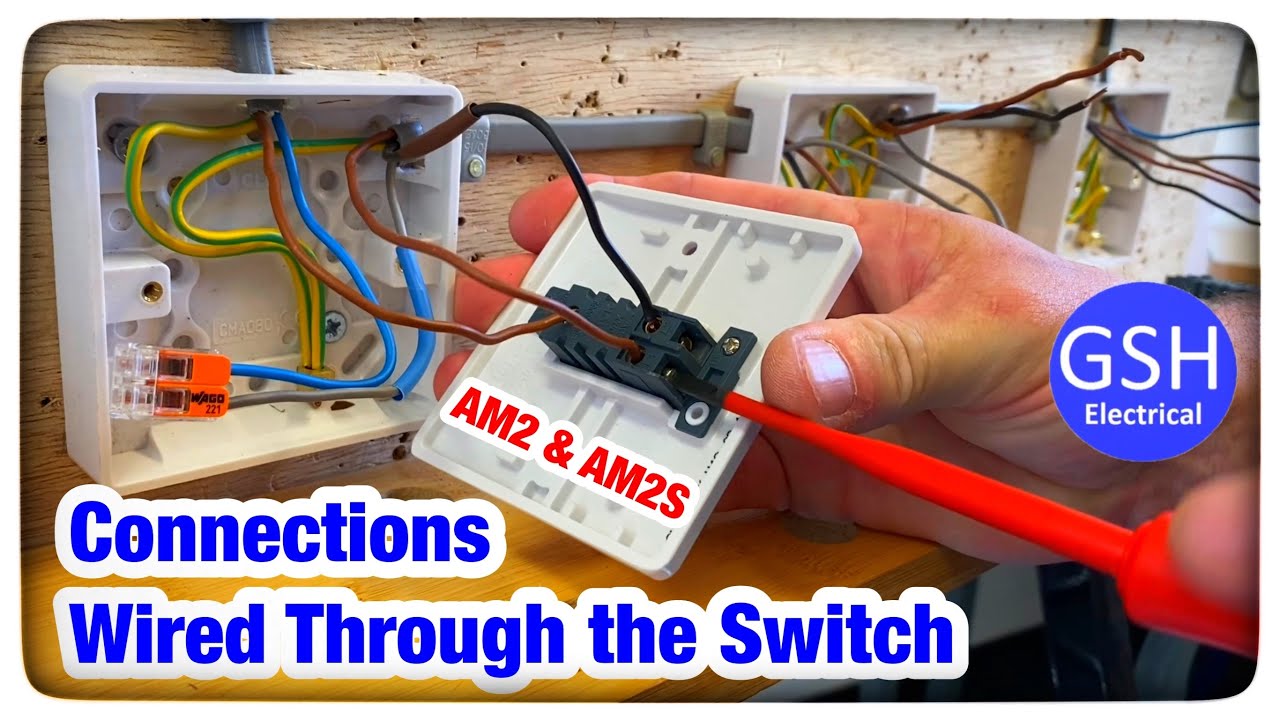

In this video we look a method of wiring 2 way and intermediate switching of a lighting circuit when wired through the switch. Understanding this wiring could be useful when undertaking your end point assessment for AM2, AM2S or AM2E for apprentice electricians. In this system the neutral is taken through each of the switches meaning at all 3 switches you will have a connection for the neutral in the back box. This wiring should help you visualise the method of wiring 2 way and intermediate switches when using wired through the switch. I make off all the connections using feed through the switch method of wiring 2 way and intermediate switching. Care must be take to identify your conductors correctly in your switches and connect the neutral so it passes through each switch.

In your end point assessment you may NOT have access to the lighting wiring diagram once your assessment starts but you could be expected to wire it or draw it from memory.

☑️ Link below is to the images used in this series of videos on lighting wiring diagrams
https://1drv.ms/b/s!As2jEnZePpD0iXUBdgpj18aZMvY8?e=VLolVV

🔵 Wiring Diagram Taking the Feed Through the Switches - AM2, AM2S & AM2E Lighting Circuit Explained https://youtu.be/cIPZhriDQr8

== 🕐 Time Stamps - Cut to the action 🕕 ==

00:00 - Wired through the switch 2 way and intermediate switching of a light
00:43 - Overview of the lighting circuit
01:29 - Identifying the supply into the first 2 way switch
01:50 - What colour is the neutral
02:57 - Identifying the neutral
03:24 - Connections in our first 2 way switch
04:13 - First 2 way switch connected
04:39 - Intermediate switch
05:37 - Doubling my ends over
06:05 - Connecting the intermediate switch
06:57 - Last 2 way switch
07:40 - Connecting the last 2 way switch
08:32 - Connection at our lighting point
08:53 - Summary
