3-Phase DOL Starter Wiring & Connections Explained ⚡

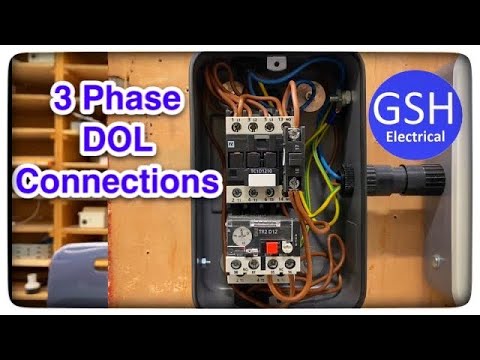

Electrician Matt and me look at and the wiring and connection in a 3 phase direct online started (DOL). In this video we explains how to connect the supply and the out going load (motor) within in a DOL starter. Matt explains the wiring for the overload relay and reset button plus the connection for the internal stop and start buttons. This video will help with level 3 electrical courses for both electrical apprentices, part time, full time learners as well as AM2, AM2S and AM2E.

🔔 Subscribe for more free electrical training videos https://youtube.com/c/GSHElectrical?sub_confirmation=1

🔵 3 Phase Direct Online (DOL) Starter Wiring Diagram https://youtu.be/mcXxhUaUb94

== 🕐 Time Stamps - Cut to the action 🕕 ==

00:00 - Connection in a 3 phase DOL
00:42 - Safely isolated
00:58 - Incoming phases
01:19 - Outgoing to the motor
02:13 - Retaining contact
02:29 - Start button
02:46 - Stop button
03:23 - A1 termination of the coil
03:32 - A2 connected to neutral
03:54 - Contactor
04:22 - Overload
04:43 - Setting the motor overload

Videos are training aids for City and Guilds (C and G) and EAL courses Level 1, 2, 3 plus AM2, AM2S and AM2E.
