Wiring Diagram for 2-Way Lighting Circuit Using the 3 Plate Loop-In Method

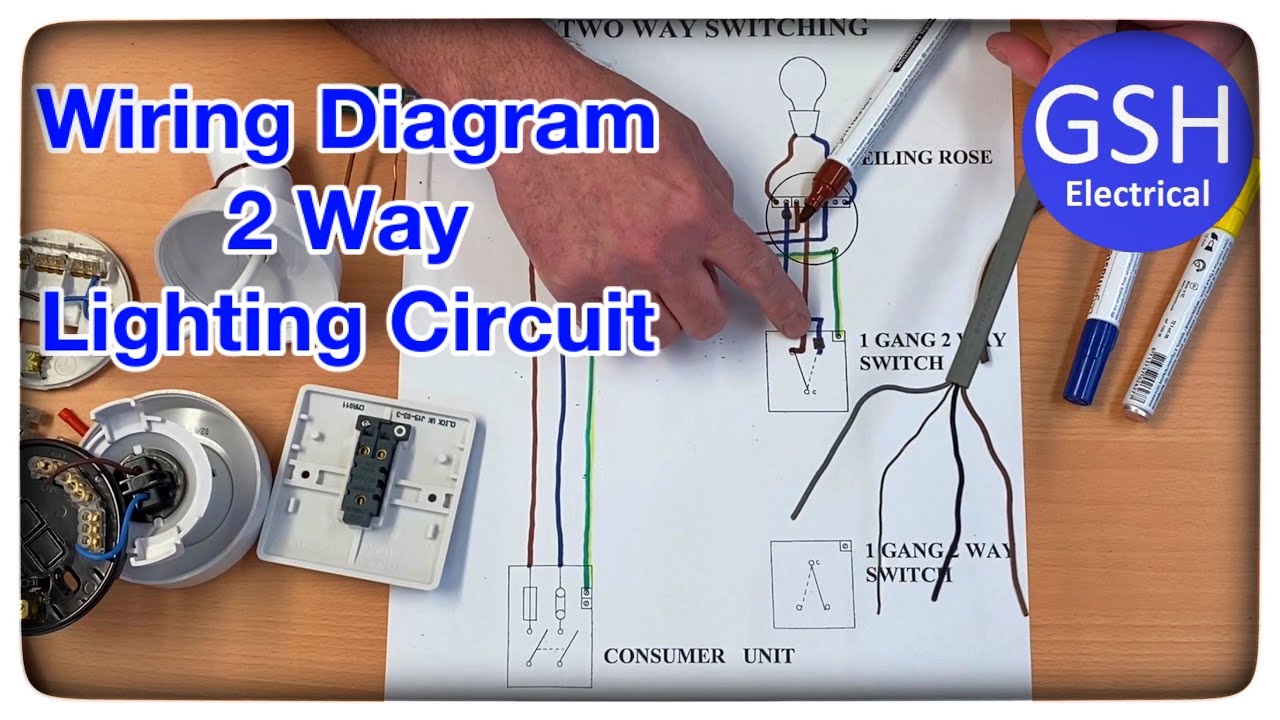

Student training aid for the connections required to wire a lighting circuit using the 3 plate loop-in method. Video explains the connection required within the ceiling rose, a consumer unit (fuse box) and in 2 way switches. The circuit is wired in twin and cpc cables (twin and earth cable) and is a wiring diagram for this circuit. This video will show learners how to connect up a ceiling rose and pendant and 2 way light switches.

How to wire up a light and a two way switched lighting circuit. This wiring diagram will help you understand the connection requires in a 2 way lighting circuit.

☑️ Link below is to the images used in this series of videos on lighting wiring diagrams
https://1drv.ms/b/s!As2jEnZePpD0iXUBdgpj18aZMvY8?e=VLolVV

🔵 Wiring Diagrams for Lighting and Motor Circuits https://www.youtube.com/playlist?list=PL2Ea5r9gxUUfm4SACOSOZigCeSxxC5xaO

== 🕐 Time Stamps - Cut to the action 🕕 ==

00:00 - Wiring diagram 2 way switching
00:46 - 2 way switching demonstration
01:05 - Looking back at 1 way switching of a light wiring diagram
01:18 - Connections in a 1 gang 2 way switch : common, L1 and L2
01:52 - Connection in a ceiling rose or batten lamp holder
02:26 - Cables for 2 way switching of a light twin and CPC (twin and earth) and 3 core and CPC
03:47 - Cable from the consumer unit to the lighting point
06:28 - Cable from the light to the first 2 way switch
08:25 - Cable from the first 2 way switch to the second 2 way switch
11:25 - Circuit connections is the light on or off
12:50 - Extending the lighting circuit into another room

Videos are training aids for City and Guilds (C and G) and EAL courses Level 1, 2, 3 plus AM2, AM2S and AM2E.
