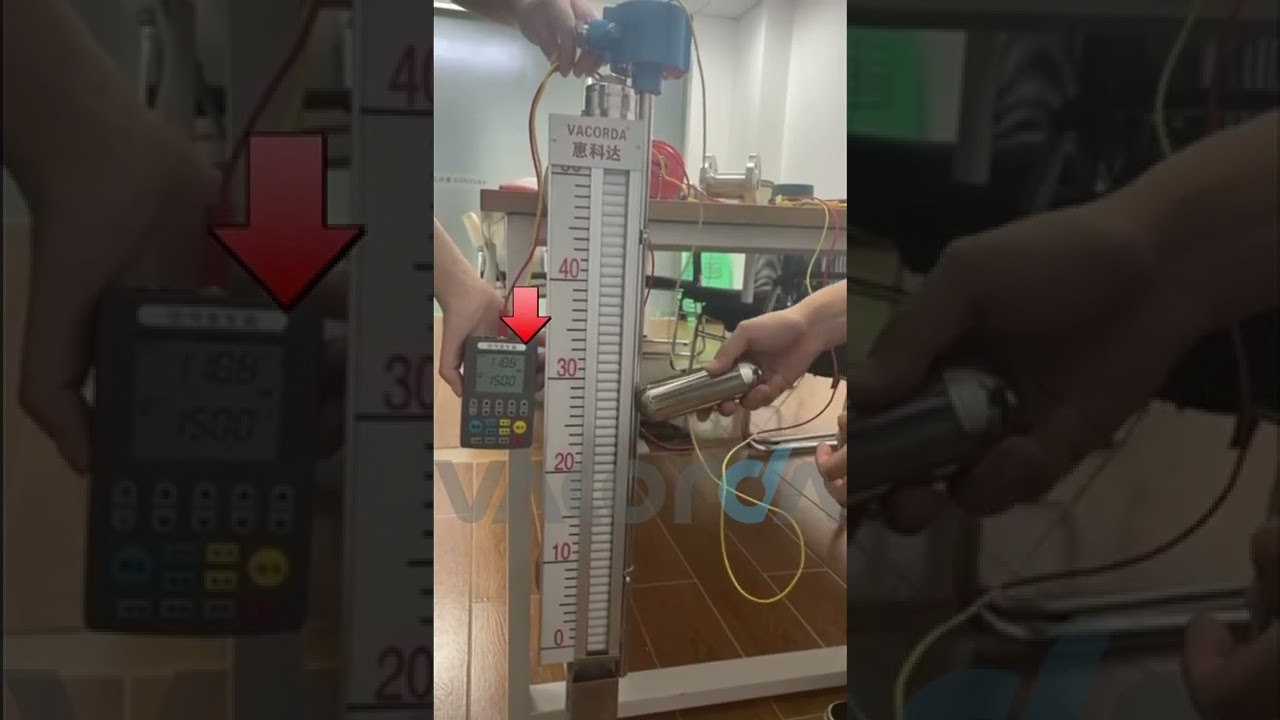

Magnetic Level Transmitter: Working Principle Explained
Learn how magnetic liquid level transmitters use reed switches, resistors, and magnetic floats to measure liquid levels accurately.
Elena Yang
1.2K views • Apr 2, 2022
About this video
Magnetic liquid level transmitter consists of imported reed switch, precision resistor and conversion circuit. When the magnetic flux of the magnetic float in the magnetic flip column level gauge is closed to the reed switch at a certain position, the resistance of the three-wire potentiometer is proportional to the liquid level change, and the change of the liquid level is converted into the 4~20mADC signal by the conversion circuit. Output for detection and transmission of liquid level signals.
#leveltransmitter #levelmeasurement #VACORDA
#leveltransmitter #levelmeasurement #VACORDA
