Strange Lego Gears

Different unconventional gear types that Lego does not make, all integrated into a Lego display machine that rotates the gears and itself. The machine is wind-powered, utilising a vertical wind turbine. The shifter turns the machine 1/12 of a revolution at a time, while only displaying one gear at a time to reduce friction.
All the gears have been 3D printed using an FDM printer and Silk PLA. I designed some gears myself and also redesigned others to fit perfectly within Lego dimensions."

Chapters:

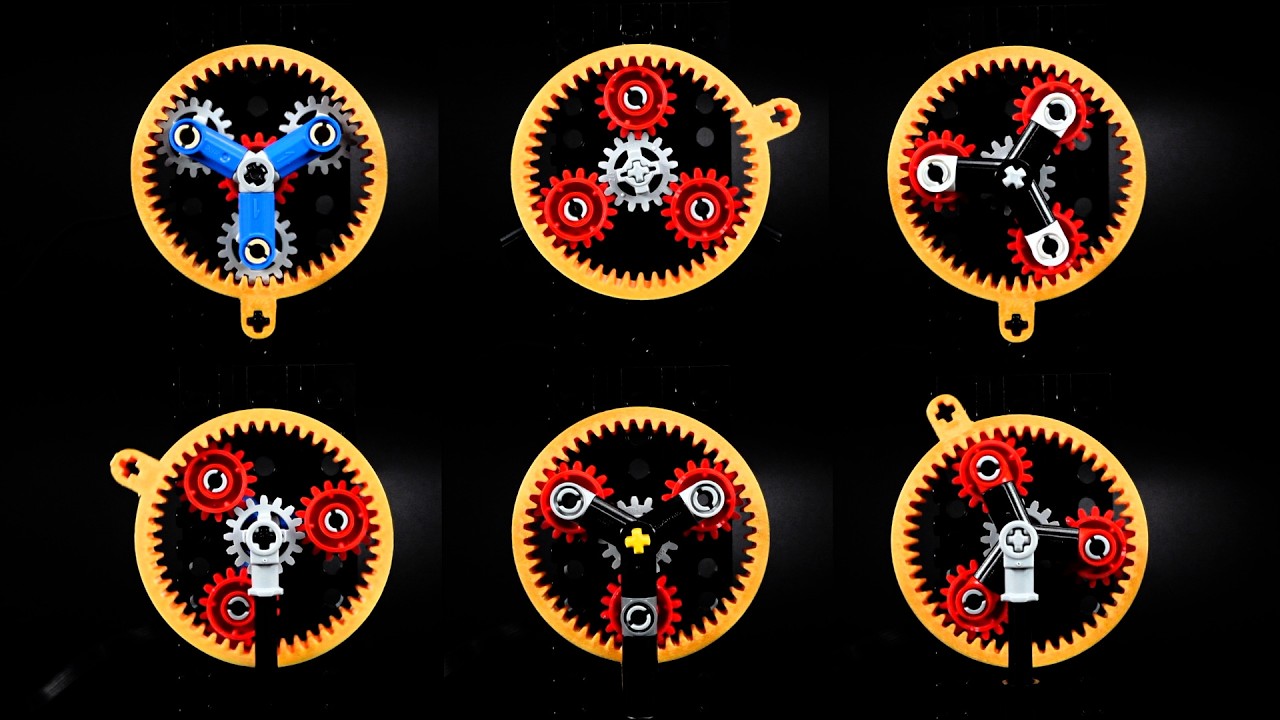

00:00 Planetary Gear
00:19 Helical Gear
00:34 Geneva Drive
00:48 Oval Gear
01:01 Paradoxical Gear
01:21 Herringbone Gear
01:35 Directional Changing Gear
01:52 Hypoid Gear
02:05 Cycloidal Gear
02:21 Nautilus Gear
02:44 Harmonic Drive
03:06 Shift Drum
03:19 Non-Circular Gear



Camera used for this video: https://amzn.to/3J50QZq
Microphones used for this video: https://amzn.to/405sX0X

Please note: I get a commission if you buy via Amazon link above. Thanks for your support.
Where I get my Lego parts from: https://www.bricklink.com/v2/main.page


3D Printer used to make these gears: https://store.creality.com/products/ender-5-s1-3d-printer?aid=Brick_Technology

3D Design Software: https://link.shapr3d.com/cad-5589a6

Sources for the redesigned gears:
https://www.thingiverse.com/thing:3091570
https://www.thingiverse.com/thing:1720925
https://www.thingiverse.com/thing:5409190
https://www.thingiverse.com/thing:1976937
https://www.thingiverse.com/thing:4906453
https://www.thingiverse.com/thing:1344716
