Step-by-Step Guide to Wiring a 2-Door Access Control System

Today, we’re diving into the essentials of a 2-door access control system! This technology is crucial for enhancing security in both residential and commercial spaces. Let’s break it down step-by-step.

First up, what exactly is an access control system? It’s a security solution that restricts entry to authorized individuals only, ensuring that sensitive areas remain protected. In this cas e, we’re focusing on a 2-door setup, which is ideal for managing entry and exit points effectively.

Now, let’s talk about the key components. A typical 2-door access control system includes a controller, two door locks, card readers or keypads for user authentication, and power supply units. Each component plays a vital role in maintaining the integrity of your security system.

Next, we have the door controller. This is the brain of the operation—managing access permissions and communicating with all connected devices. When a user presents their credentials at the reader, the controller verifies them and decides whether to unlock the door.

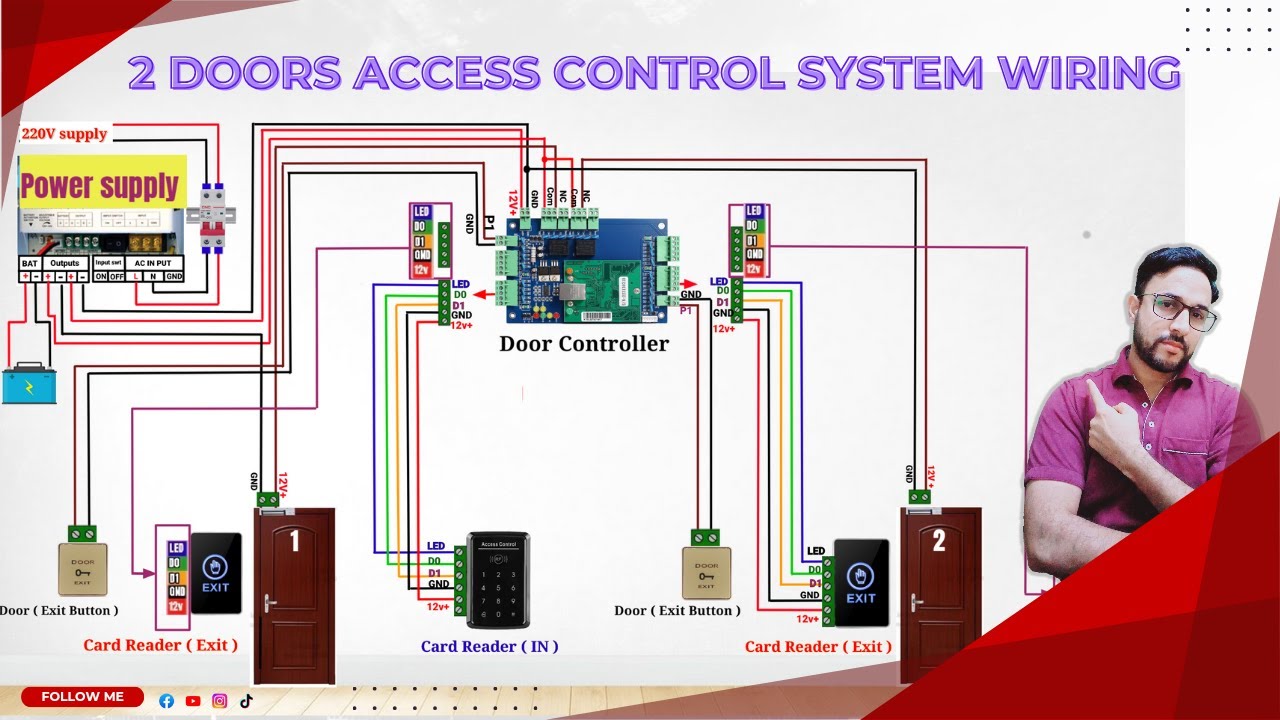

Now, let’s move on to the connection diagram. Picture this: your controller connects to both door locks and readers. Each lock is wired back to the controller, while the readers send signals to authenticate users. Make sure to follow proper wiring protocols to ensure everything functions seamlessly.

Lastly, don’t forget about power supply! Keeping your system powered is essential; ensure you have a reliable source that can handle all components efficiently.

So there you have it—a comprehensive overview of a 2-door access control system! Remember, investing in a robust access control solution not only protects your property but also provides peace of mind. If you found this information helpful, like and share for more security tips!
