SMG3314-VB P-Channel MOSFET in SOT23 Package – High Voltage & Current Performance ⚡

"Model: SMG3314-VB


Brand: VBsemi
Package: SOT23

**Detailed parameter description:**
- Channel type: P-Channel
- Maximum withstand voltage: -30V
- Maximum current: -5.6A

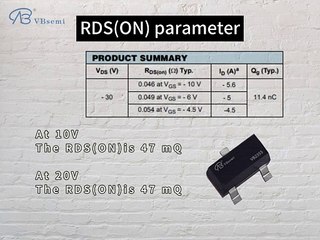

- On-state resistance (RDS(ON)): 47mΩ @ VGS=10V, VGS=20V
- Threshold voltage (Vth): -1V

**Application introduction:**
SMG3314-VB is a P-Channel field effect transistor launched by VBsemi. It adopts SOT23 package and has excellent electrical performance. It is suitable for a variety of electronic application scenarios.

**Application field:**
1. **Power management:** Suitable for power switches and management circuits to provide efficient power conversion.
2. **Current control module:** It can be used to design current control modules to ensure accurate and stable current output.
3. **Power inverter:** It can be used as a key component in the power inverter to achieve efficient power conversion.

**Features:**
- High-performance P-Channel design.
- Low threshold voltage, which helps to flexibly apply to different electronic devices.
- Small SOT23 package, easy to integrate in compact space.

**Notes:**
In the design, please reasonably configure the working parameters according to the actual application scenario and circuit requirements. For detailed electrical performance curves and working conditions, please refer to the product data sheet.

The above information is for reference only, and the specific circuit design and application need to be adjusted according to the actual situation."
