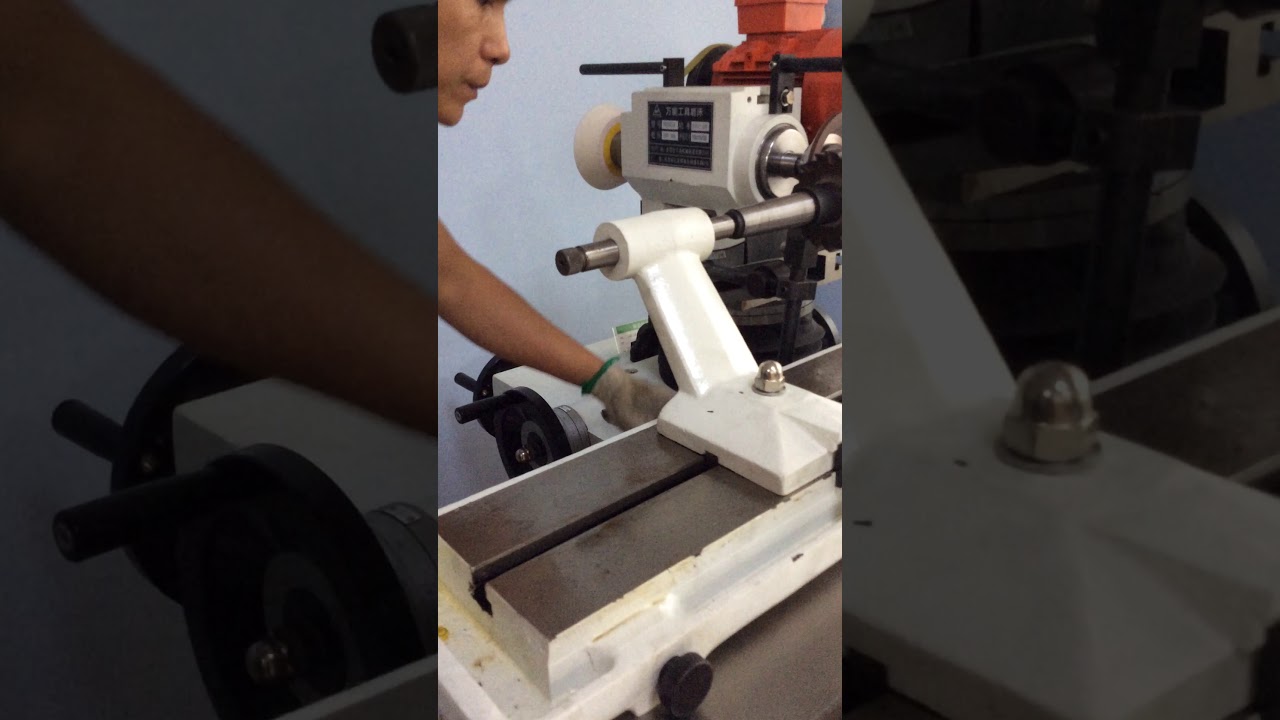

MQ6025A universal tool grinder (Hobbing cutter grinding )

1. This series machine is especially suitable for sharpening tools in HSS, tungsten carbide and other materials.

2. It is specifically for cylindrical, surface, slot and profile grinding work. Using different optional accessories, we can greatly extend the range of application of this machine; it can solve individual machining problems, such as grind various hobs, tools, cutters, twist drills and steep taper reamers and etc.

3. This machine wheel head can turning in 360°, can hold 2 grinding wheel at one time.

4. The work head support one end with ISO NT50 hole and the other end with MT5# hole.

5. Worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.

Technical Dates:
Max. swing dia. of work piece 250mm
Max. distance between centers 700mm
Working Surface of table 940*135mm
Max. longitudinal travel of table 480mm
Max. swing angle of table ±30°
Max travel of wheel head cross vertical 270mm
Max. swing angle of wheel head in horizontal plane 360°
Max. swing angle of wheel head in vertical plane 30° ±15°
The end taper of the spindle MT 3#
Main motor power 0.85/ 1.1KW，
The Speed of motor 1400/ 2800rpm
The speed of spindle 3010/ 6010rpm
The Motor of Cylindrical grinding attachment 0.25KW 1400 rpm
The size of the machine 165*115*150cm
The weight of the machine 940kg
