Mastering Fillets and Chamfers in SolidWorks for Perfect Edges ✨

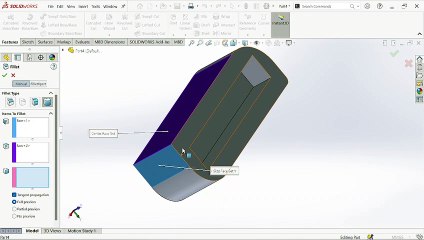

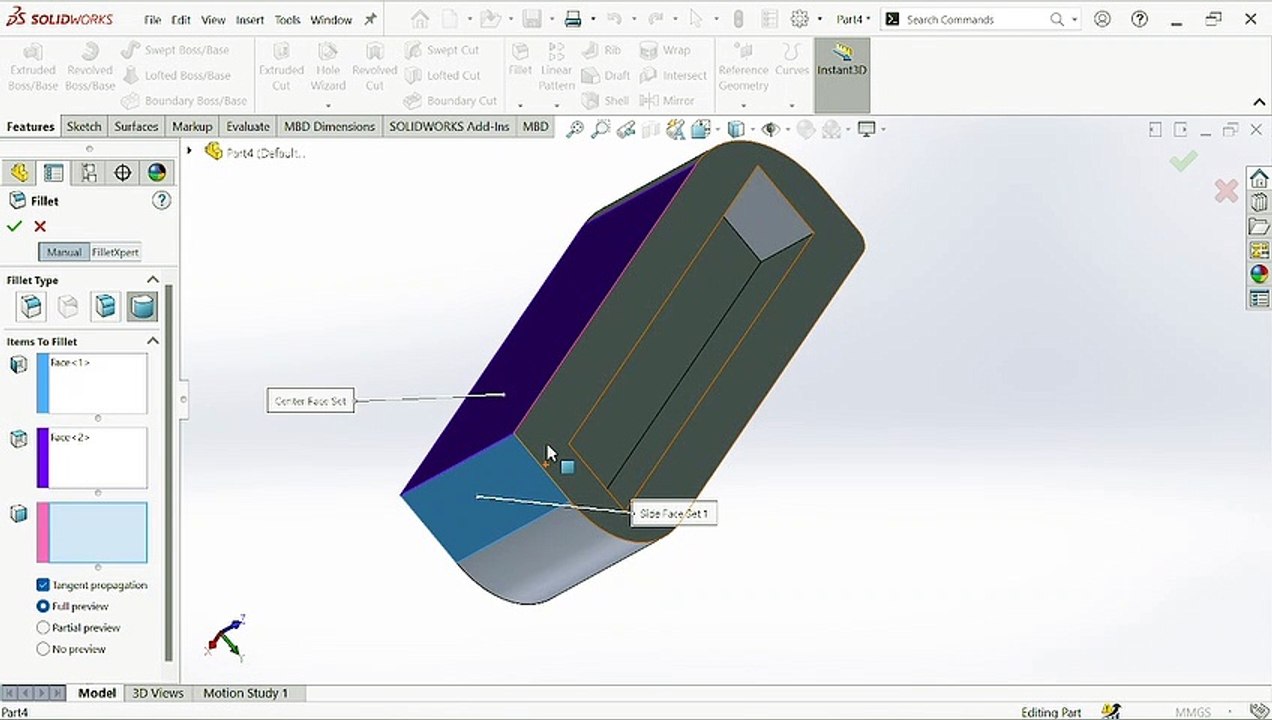

Fillets and chamfers<br /><br />In SolidWorks, fillets and chamfers are used to round or bevel edges and corners of 3D models. Here are the steps to apply fillets and chamfers in SolidWorks:<br /><br />Applying Fillets:<br /><br />1. Select the edge you want to fillet.<br />2. Go to the "Features" tab and click on the "Fillet" command.<br />3. In the Fillet Property Manager, set the fillet size and radius, and choose whether you want a simple fillet or a variable radius fillet.<br />4. Click "OK" to apply the fillet.<br /><br />Applying Chamfers:<br /><br />1. Select the edge you want to chamfer.<br />2. Go to the "Features" tab and click on the "Chamfer" command.<br />3. In the Chamfer PropertyManager, set the chamfer distance and angle, and choose whether you want a symmetric or asymmetric chamfer.<br />4. Click "OK" to apply the chamfer.<br /><br />You can also apply multiple fillets and chamfers to the same edge or set of edges by selecting them all before activating the fillet or chamfer command.
