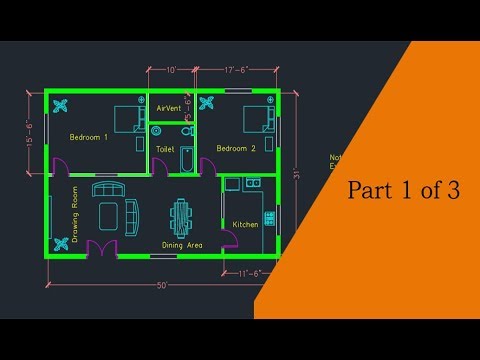

AutoCAD Floor Plan Basics: Part 1 📐
Learn to create a simple floor plan in AutoCAD. Download the free practice drawing eBook for step-by-step guidance.
SourceCAD
10.9M views • Nov 7, 2017
About this video
Download the free AutoCAD practice drawing eBook containing fully dimensioned drawing used in this video here: https://sourcecad.com/autocad-practice-drawings-with-pdf-ebook/
In this AutoCAD video tutorial series, I have explained steps of making a simple 2 bedroom floor plan in AutoCAD right from scratch.
here are the topics:
00:00 Introduction
0:52 - setting units
1:18 - drawing the base of your floor plan
5:27 - setting up your block layers
7:09 - drawing a door block
9:03 - drawing a window block
10:55 - covert your drawings to blocks
In this AutoCAD video tutorial series, I have explained steps of making a simple 2 bedroom floor plan in AutoCAD right from scratch.
here are the topics:
00:00 Introduction
0:52 - setting units
1:18 - drawing the base of your floor plan
5:27 - setting up your block layers
7:09 - drawing a door block
9:03 - drawing a window block
10:55 - covert your drawings to blocks
