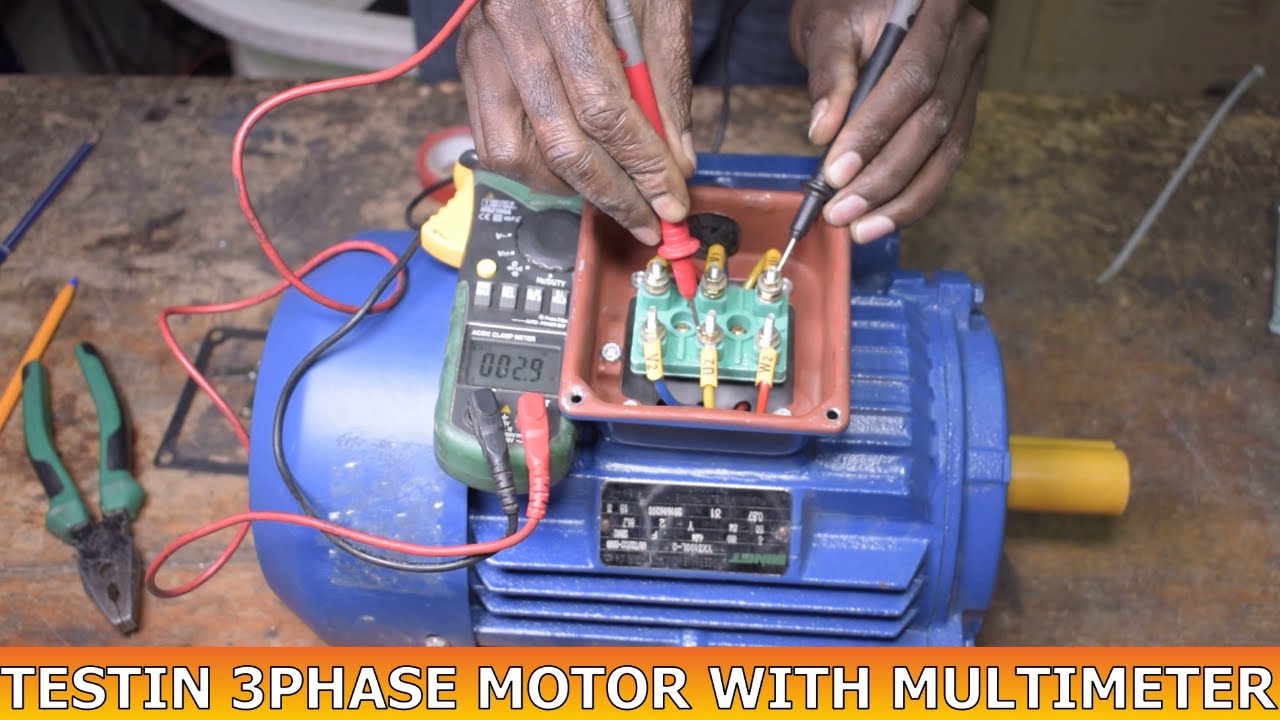

How to Test a 3-Phase Motor with a Multimeter

Let's learn how to test 3 3-phase motor with a multimeter
were are testing the following
1) Continuity
Disconnect the motor from power and ensure that all the leads are not connected to each other in the terminal box. Test the continuity between each coil contact (U1 U2, V1 V2 and W1 W2) and make sure that there is continuity. if there is no continuity, then probably your motor is burnt.
2) Short circuit test
We test short circuit between coils for Example, testing between U1 and V1 and so on. There must know continuity between coils if all the 6 leads are out. (The only exception is when the motor has been connected internally either in star or delta).
3) Resistance
While testing continuity ensures that you record the reading, the reading is determined by the resistance of the coil. The reading between each coil should be the same or the difference should minor.
