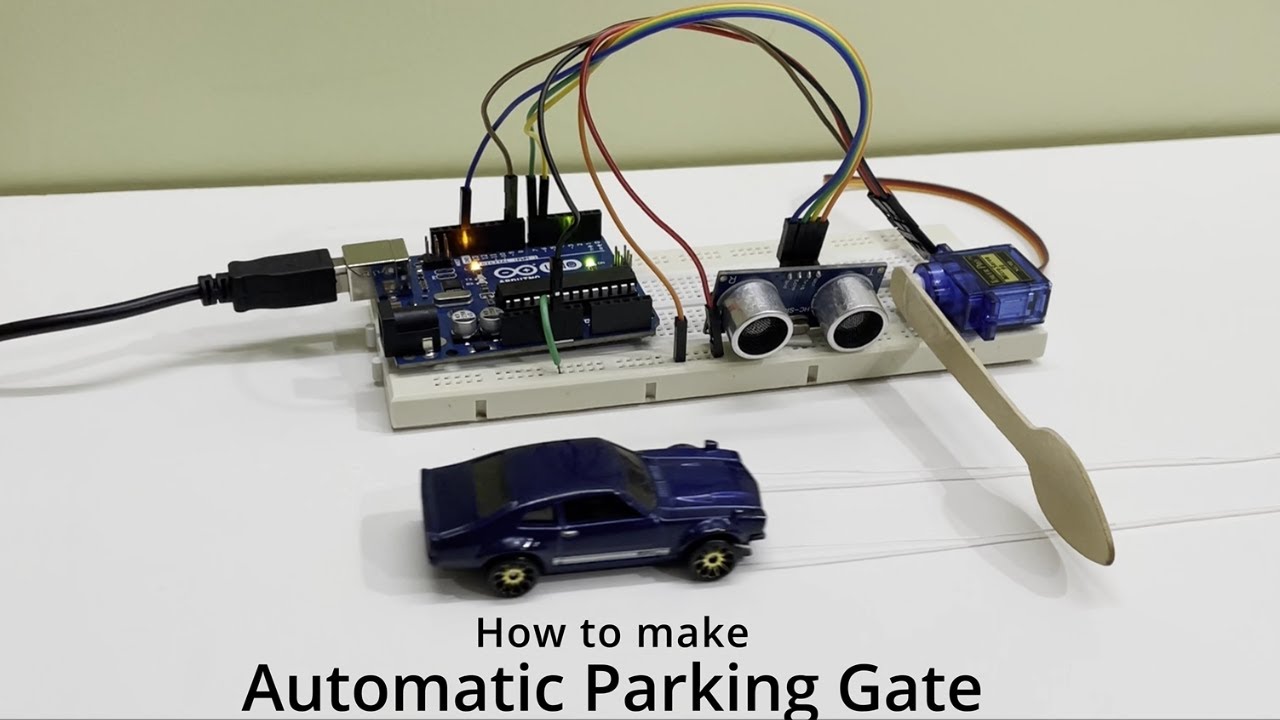

Build a 4K Automatic Car Parking Toll Gate 🚗 with Arduino

Automatic Gate opener
Components used :
1. Arduino
2. UltraSonic sensor
3. Servo Motor
4. Breadboard

CODE , REPORT , CIRCUIT DIAGRAM ⬇️ https://github.com/neosandeep24/ArduinoExperiments/tree/main/Parking_servoMotor

Circuit Connections:-

Ultrasonic sensor ---- Arduino
trigger pin --- digital pin 6
echo pin --- digital pin 7
Vcc --- 5v
Gnd --- Gnd

Servo motor
control signal of servo motor (ORANGE) ----- Digital pin Number 9 of arduino
vcc of servo motor (RED) ----- 5v of arduino
GND of servo motor (BLACK) ----- GND of arduino
