Fuses vs. MCBs: Key Differences Explained ⚡

Fuses and MCBs (Miniature Circuit Breakers) are both electrical protection devices used in electrical circuits, but they have some key differences. Here are the main differences between fuses and MCBs:

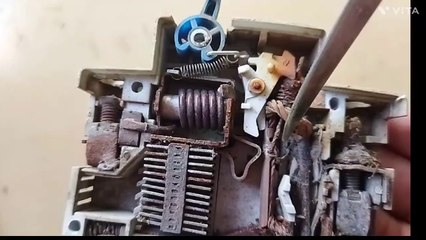

Operation: Fuses are designed to protect electrical circuits from overcurrent conditions. They consist of a wire or strip of metal that melts when the current exceeds a certain value, interrupting the circuit and protecting it from damage. MCBs, on the other hand, use a bimetallic strip or an electromagnet to sense the current passing through the circuit. When an overcurrent condition is detected, the MCB automatically trips and opens the circuit.

Resetability: Fuses are generally one-time devices. Once the fuse wire melts and the circuit is interrupted, the fuse needs to be replaced with a new one. MCBs, however, are reusable devices. After tripping due to an overcurrent condition, MCBs can be manually reset by toggling the switch back to its "ON" position.

Response time: Fuses typically have a slower response time compared to MCBs. When an overcurrent occurs, it takes a certain amount of time for the fuse wire to melt and interrupt the circuit. MCBs, on the other hand, can trip much faster, providing quicker protection against overcurrent conditions.

Sensitivity: MCBs can be more sensitive and precise in their tripping characteristics compared to fuses. MCBs are available with different trip current ratings and can be set to trip at specific current levels. This allows for more accurate protection tailored to the specific circuit requirements. Fuses, on the other hand, have a fixed current rating and may have a slightly higher tolerance, meaning they may allow slightly higher currents to pass before tripping.

Cost: In general, MCBs are more expensive than fuses. While the initial cost of installing MCBs may be higher, their reusable nature and ease of resetting make them more cost-effective in the long run.
