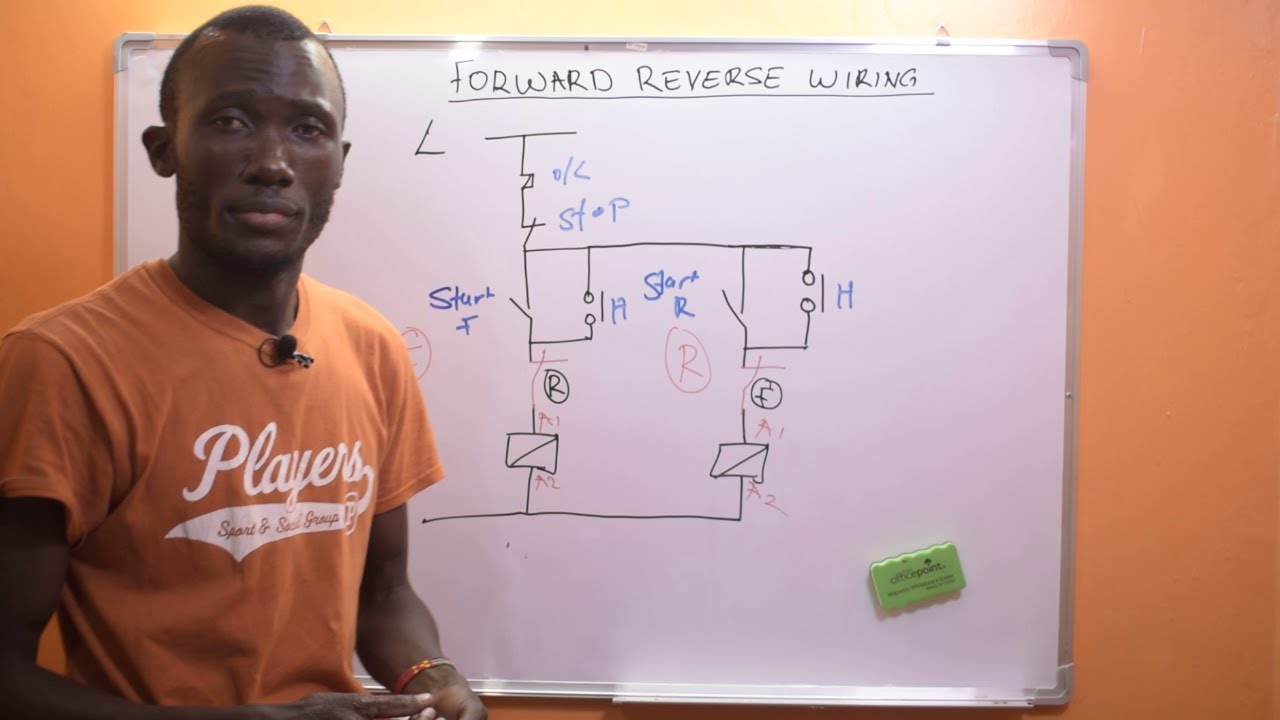

Wiring Guide for Forward & Reverse Switches 🔧

forward, reverse, switch wiring
The Reversing Starter is a special type of push-button starter wherein addition to starting/ stopping of motor,s the direction of rotation of a three-phase induction motor can be done by interchanging the connection of any two terminals of the supplies which are done through two separate contactors, one for forward and the other for reverse.
A device that controls the flow of electrical power to a motor. It is designed to safely start and stop a motor and provide overload protection. A physical barrier is pushed into the path of one coil's armature by the movement of the adjacent coil in a forward/reversing motor starter.
