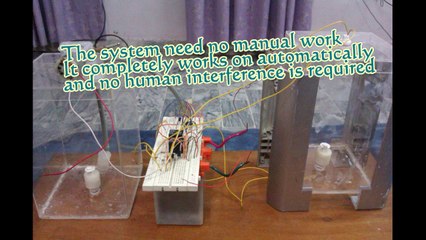

Innovative Automatic Electric Motor System Developed by SSUET Students ⚙️

This project is made by the students of SSUET Electronic Engineering Department, 3rd semsester. <br /> <br />The students made this project under the guidance of Engr.Mir Asif Khan, Engr. Tahira Zaidi and others... <br /> <br />* Most the circuit only display the amount of water present in circuit, but this circuit will "on" and "off" the motor according to the level of water present in tank. <br /> <br />* It will automatically stop the motor when tank is fill but it will "on" the motor when water in the tank reaches below a specific point. <br /> <br />* It can be easily installed in over headed tanks because of less components used in circuits. <br /> <br />* It prevents the wastage of water due to over flow of tank. <br />* Can be operated with the help of 12V battery or adaptors (converts 230V AC to 12V DC) readily available in markets. <br /> <br /> <br />Assemble the circuit properly as shown in circuit diagram. Place the sensor carefully in tank. Use good quality of sensors made from non-corrosive material. And connect the sensor to the circuit at appropriate terminal like sensor terminal H at the bottom of the tank, L terminal above the lower terminal H and then place the M terminal at the top of tank. After you have properly installed the sensors in the over headed tank connect the power supply. Now your circuit is ready to use.
