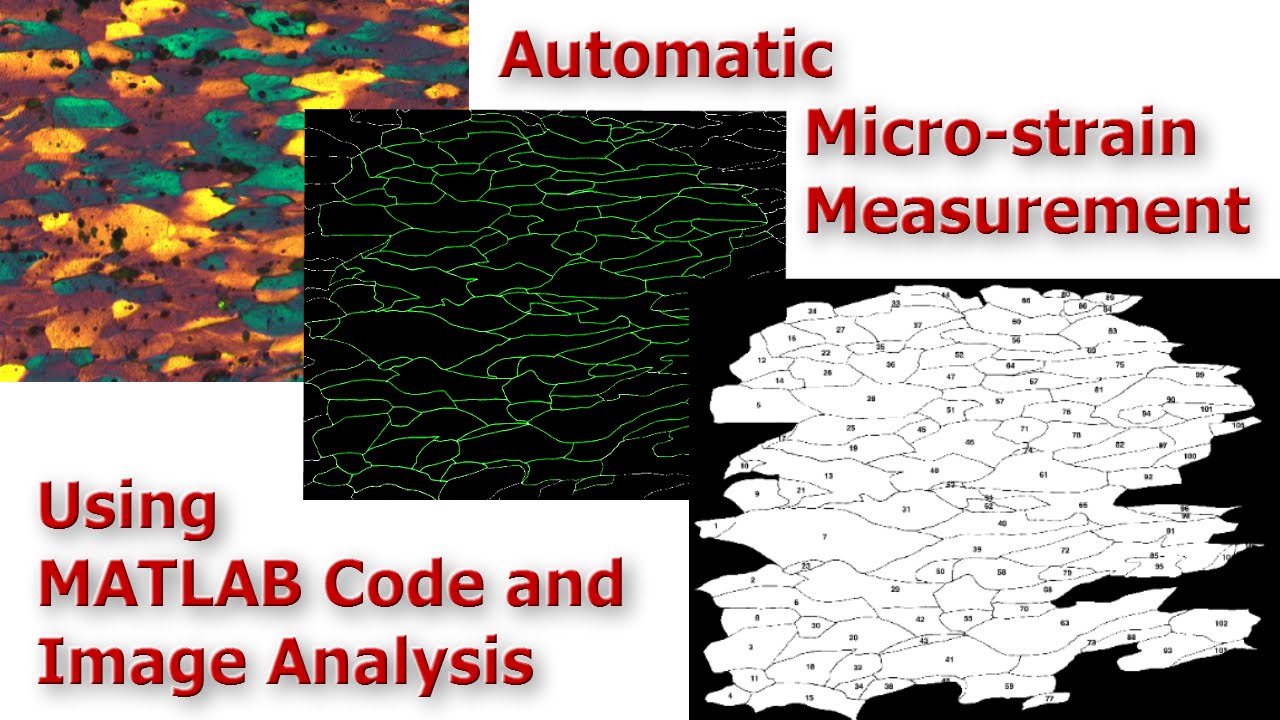

Automated Micro-Strain Measurement in Microstructures Using MATLAB and Image Processing

In this demo, I showcase a MATLAB-based image processing tool I developed for automatic micro-strain measurement in deformed microstructures. Instead of relying on manual grain size measurements, this code leverages the MATLAB Image Analysis Toolbox to detect grain boundaries, extract geometrical features, and quantify strain distribution.

Key functionalities include:

Image pre-processing for optimal grain boundary detection
Automated calculation of major and minor axes for each grain
Strain quantification and comparison against forming limit curves
Exporting results for further analysis
This method improves efficiency and accuracy in microstructural strain analysis, making it a valuable tool for materials research.

For more details about this MATLAB-based tool and other engineering solutions I’ve developed, visit my website: www.arashjenab.com.
