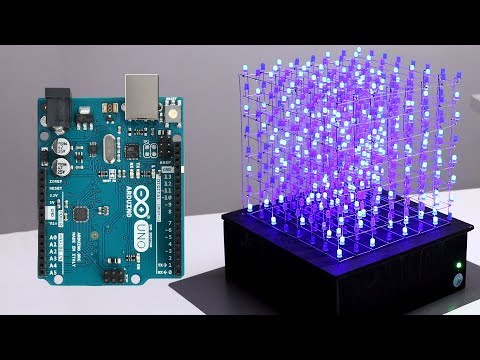

8x8x8 LED Cube with Arduino Uno 💡
Build an 8x8x8 LED cube using Arduino Uno. Find source code and schematics on GitHub. Requires 512 diffused blue LEDs and wiring.
HARRY LE
16.4M views • Aug 4, 2017
About this video
Source code and schematic can be found on my GitHub
https://github.com/itsharryle/LED_CUBE
PART LIST:
5mm diffused blue LEDs x 512
20 AWG tinned copper wire
5V 10A regulated switching power supply
Ribbon cables
PN2222 transistors x 16
220 ohm resistors x 64
74HC595 shift registers x 9
Arduino Uno R3
Solder
Soldering iron
Prototyping board
Wires
Buttons
Red LED
Green LED
Wooden board
Wood glue
Clamps
Spray paint
Foam boards
https://github.com/itsharryle/LED_CUBE
PART LIST:
5mm diffused blue LEDs x 512
20 AWG tinned copper wire
5V 10A regulated switching power supply
Ribbon cables
PN2222 transistors x 16
220 ohm resistors x 64
74HC595 shift registers x 9
Arduino Uno R3
Solder
Soldering iron
Prototyping board
Wires
Buttons
Red LED
Green LED
Wooden board
Wood glue
Clamps
Spray paint
Foam boards
