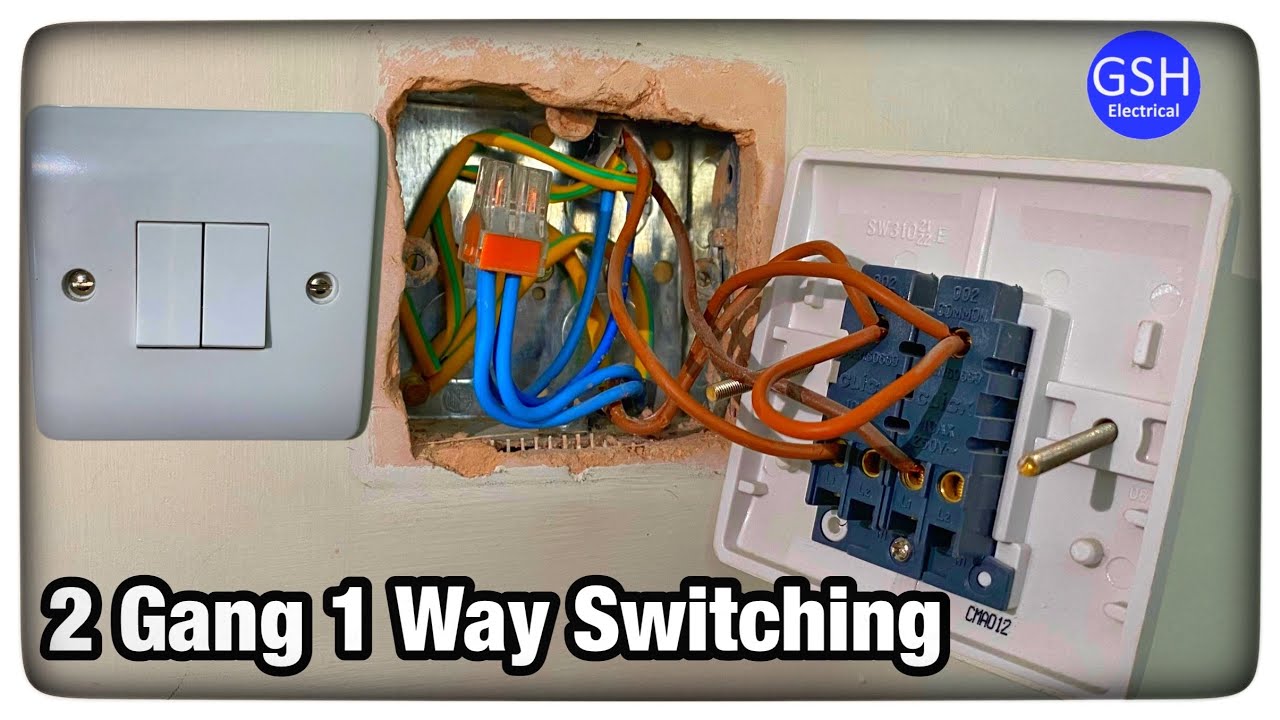

2 Wiring a 2-Gang Switch as a 1-Way Switch: Connection Explanation

The method of wiring used is the this lighting circuit is the 2 plate method this means the supply (line, neutral and CPC) is taken to the switch.

In this video we look at the wiring and connections required in a 2 gang 2 way switch which is being used as 2 one way switches. One of the switches is for a bedroom light and one for an ensuite shower room light.

🔔 Subscribe for more free electrical training videos https://youtube.com/c/GSHElectrical?sub_confirmation=1

== 🕐 Time Stamps - Cut to the action 🕕 ==

00:00 - 2 gang switch
00:32 - Switch connections
00:40 - Wiring method
01:20 - Common connections
02:00 - L1 connections
02:33 - Top tip
02:59 - 2 gang switch as 2 one way switches
03:15 - It's a NO

Videos are training aids for City and Guilds (C and G) and EAL courses Level 1, 2, 3 plus AM2, AM2S and AM2E.
