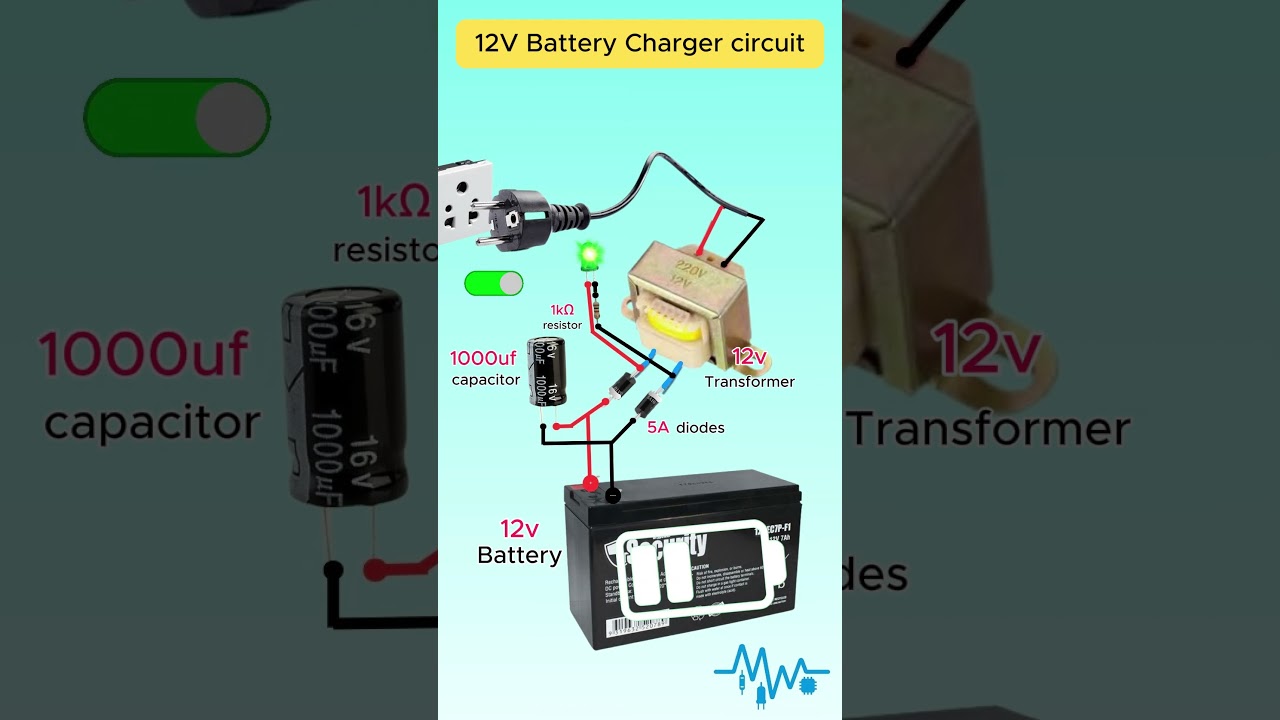

🔋 DIY 12V Battery Charger Using Transformer | Simple and Effective 🔧

In this video, I’ll show you how to make a simple 12V battery charger using a step-down transformer, diodes, capacitor, and basic components. This is perfect for charging small 12V lead-acid batteries used in UPS, alarms, and small DIY power projects.

✅ Components Used:

220V to 12V Transformer

1N5408 Diodes (2x)

1000uF/16V Capacitor

LED + Resistor

12V Lead Acid Battery (7Ah)

AC Plug

⚡ Circuit Type:
This is an unregulated linear power supply using a transformer and half-wave rectification for battery charging.

⚠️ Note:
Always handle AC voltages carefully. This circuit is for educational purposes. For safe and efficient charging, consider adding a voltage regulator or auto cutoff.
